Rotary Screw
100% DUTY CYCLE
OPERATION
- One solenoid operates AIR END, no computers.
- Easy to read pressure and temperature gauges standard.
- High pressure and dual high temperature shut down standard.
- Factory filled with 4000 hours or one year synthetic lubricant.
- Can be ordered with pressure ranges up to 175 psi. (135 psi standard.)
- 10 minute shut down timer standard, saves electricity when air is not required.
MAINTENANCE
- Built in air/oil separator with spin on filter.
- Hour meter standard, for easy record keeping.
- Off shelf V-belts with adjustable belt tightener standard.
- Spin on oil filter, automotive type paper element air filter.
- Air/oil lines are off shelf copper piping.
- Air cooled aftercooler/oil cooler standard, can easily be
- removed for cleaning.
- Heavy duty off shelf Industrial 1725RPM motors, with
- full 15% service factor.
- 2-year warranty on air end, electric motor & tank.
INSTALLATION
- Quality name brand off the shelf magnetic starter & controls, mounted and wired, just connect power.
- Self contained on a U.SA. made ASME Tank, eliminates a water separator and plumbing to a tank.

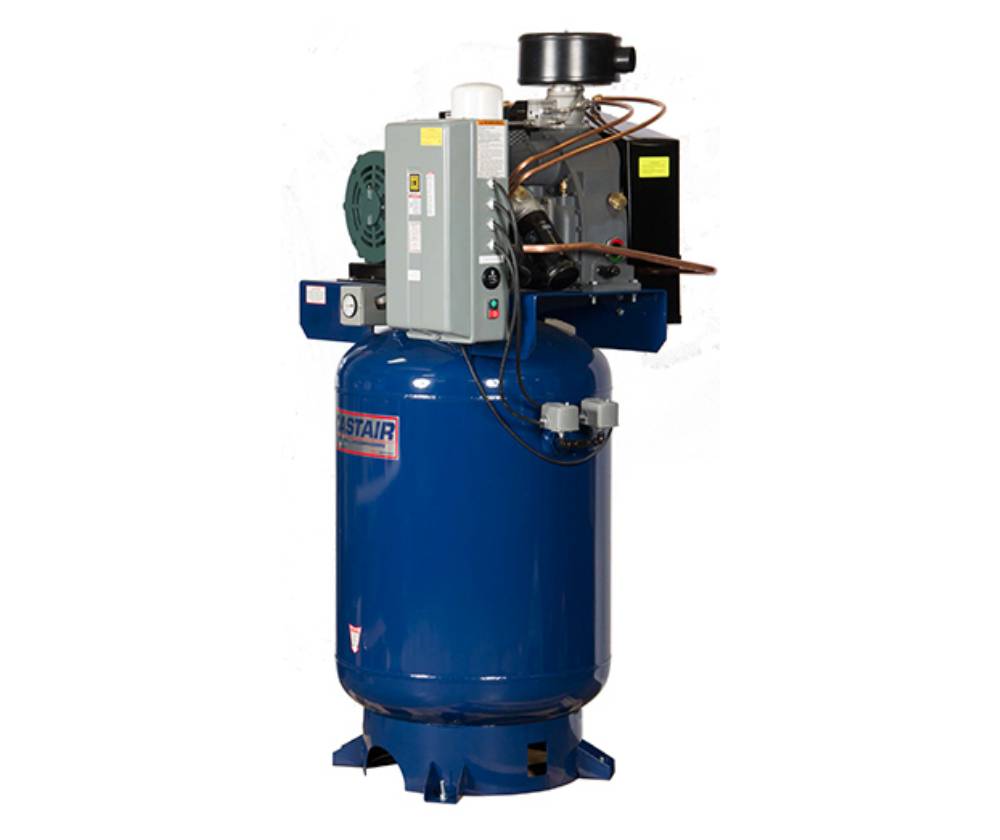

CASTAIR Rotary Screw Compressor 100% duty cycle 135 PSI standard
| HP | Phase | Tank GAL/TYPE | CFM @ 100 PSI | LxWxH Dimension | Wt. (lbs) | Unit Model |
| 5 | 1 | 80 vert. | 20 | 34x26x70 | 480 | R518VG11 |
| 5 | 1 | 80 vert. | 20 | 64x32x44 | 480 | R518VG11 |
| 7.5 | 1 | 80 vert. | 31 | 34x26x70 | 555 | R518VG11 |
| 7.5 | 1 | 80 vert. | 31 | 64x32x44 | 555 | R718HG11 |
| 10 | 1 | 80 vert. | 40 | 34x26x70 | 565 | R1018VG11 |
| 10 | 1 | 80 vert. | 40 | 64x32x44 | 565 | R1018HG11 |
| 10 | 1 | 120 vert. | 40 | 44x32x73 | 660 | R10112VG11 |
| 10 | 1 | 120 vert. | 40 | 69x33x55 | 660 | R10112HG11 |
| 5 | 3 | 80 vert. | 20 | 34x26x70 | 470 | R538VG11 |
| 5 | 3 | 80 vert. | 20 | 64x32x44 | 470 | R538HG11 |
| 7.5 | 3 | 80 vert. | 31 | 34x26x70 | 546 | R738VG11 |
| 7.5 | 3 | 80 vert. | 31 | 64x32x44 | 546 | R738HG11 |
| 10 | 3 | 80 vert. | 40 | 34x26x70 | 585 | R1038VG11 |
| 10 | 3 | 80 vert. | 40 | 64x32x44 | 585 | R1038HG11 |
| 10 | 3 | 120 vert. | 40 | 44x32x73 | 645 | R10312VG11 |
| 10 | 3 | 120 vert. | 40 | 69x33x55 | 645 | R10312HG11 |
| 15 | 3 | 120 vert. | 52 | 44x32x73 | 765 | R15312VG11 |
| 15 | 3 | 120 vert. | 52 | 69x33x55 | 765 | R15312HG11 |
| 15 | 3 | 120 vert. | 58 | 44x32x73 | 930 | R15312VG30 |
| 15 | 3 | 120 vert. | 58 | 69x33x55 | 930 | R15312HG30 |
| 20 | 3 | 120 vert. | 80 | 44x32x73 | 930 | R20312VG30 |
| 20 | 3 | 120 vert. | 80 | 69x33x55 | 930 | R20312HG30 |
| 25 | 3 | 120 vert. | 105 | 44x32x73 | 1045 | R25312VG30 |
| 25 | 3 | 120 vert. | 105 | 69x33x55 | 1045 | R25312HG30 |
| 30 | 3 | 120 vert. | 130 | 44x32x73 | 1065 | R30312VG30 |
| 30 | 3 | 120 vert. | 130 | 69x39x55 | 1065 | R30312HG30 |
Call for pricing on 40hp & above.
Options: Factory Mounted
| 5-30hp 230V standard | 460V |
| Electronic auto tank drain | #SDV03M |
| 4”x4”x1” vibration pads (set of 4) | #VP1004 |
Ball valves full flow
| HP | Part # | Dimension |
| 5-10 | BV75 | 3/4” |
| 15-20 | BV100 | 1” |
| 25-40 | BV125 | 1.25” |
| 50-60 | BV125 | 1.50” |
Metal flex hose all are 18” length
| Part # | Dimension |
| VA075 | 3/4”NPT x 18” |
| VA100 | 1”NPT x 18” |
| VA125 | 1.25” NPT x 18” |
| VA150 | 1.50” NPT x 18” |
Preventative maintenance kits
2-air filters, 4-oil filters, 1-separator filter, 5-gallons synthetic CAST-LUBE oil
| Part # | Preventative maintenance Kit for: | HP |
| MKD3-4 | D3, D31, & D4 air end | 5-10 |
| MKD6 | D6 air end | 15-20 |
| MKD62 | D62 air end | 15-25 |
| MKG11 | G11 air end | 5-15 |
| MKG30 | G30 air end | 15-30 |
| MKD10 | D10 air end | 25-40 |
| MKD16 | D16 air end | 50-60 |
MAINTENANCE FILTERS
| Part # | Description |
| RAFD3-4 | Air filter D3, D31 & D4 paper (ID: 2 7/8”, OD: 4 5/8”, HGT: 2 7/16”) |
| RAFD6-62 | Air filter D6 & D62 paper (ID: 4 3/4”, OD: 6 1/8”, HGT: 2 7/8”) |
| RAFD10 | Air filter D10 paper (ID: 6 3/8”, OD: 9 1/2”, HGT: 5”) |
| RAFD16 | Air filter D16 paper (ID: 6 3/8”, OD: 9 1/2”, HGT: 7 7/8”) |
| RAFG11 | Air filter G11 paper (ID: 2 5/8”, OD: 3 7/8”, HGT: 3 1/8”) |
| RAFG30 | Air filter G30 paper (ID: 5 3/4”, OD: 9 1/4”, HGT: 5 3/16”) |
| ROFD3-4-G11 | Oil filter D3, D31, D4, G11 spin on |
| ROFD6 | Oil filter D6 spin on |
| ROFD62 | Oil filter D62 spin on |
| ROFD10 | Oil filter D10 spin on |
| ROFD16-G30 | Oil filter D16, G30 spin on |
| RSFD3-4-6 | Separator filter D3, D31, D4 & D6 spin on |
| RSFD62 | Separator filter D62 spin on |
| RSFG11 | Separator filter G11 spin on |
| RSFD10-16-G30 | Separator filter D10, D16, G30 spin on |
