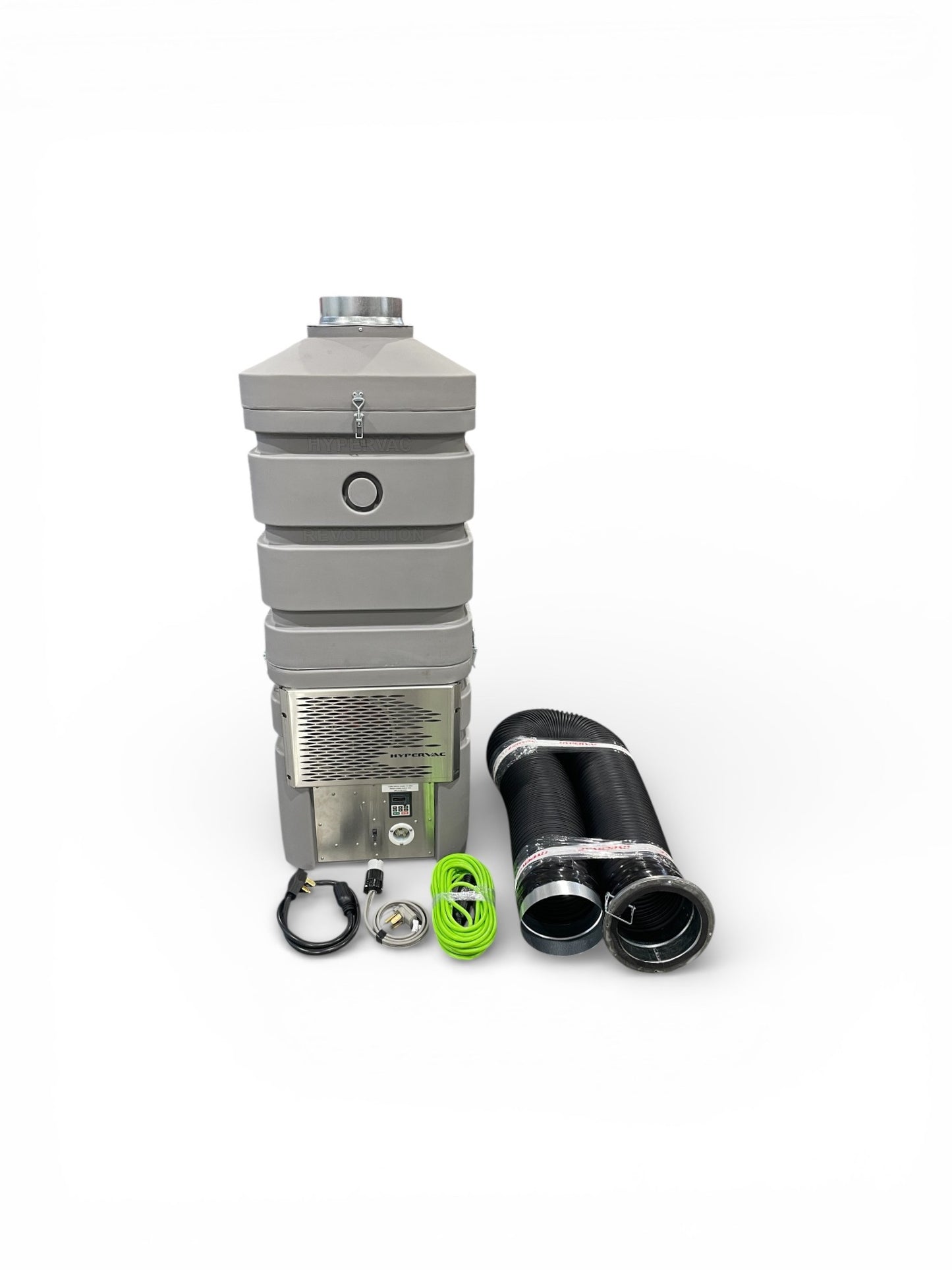

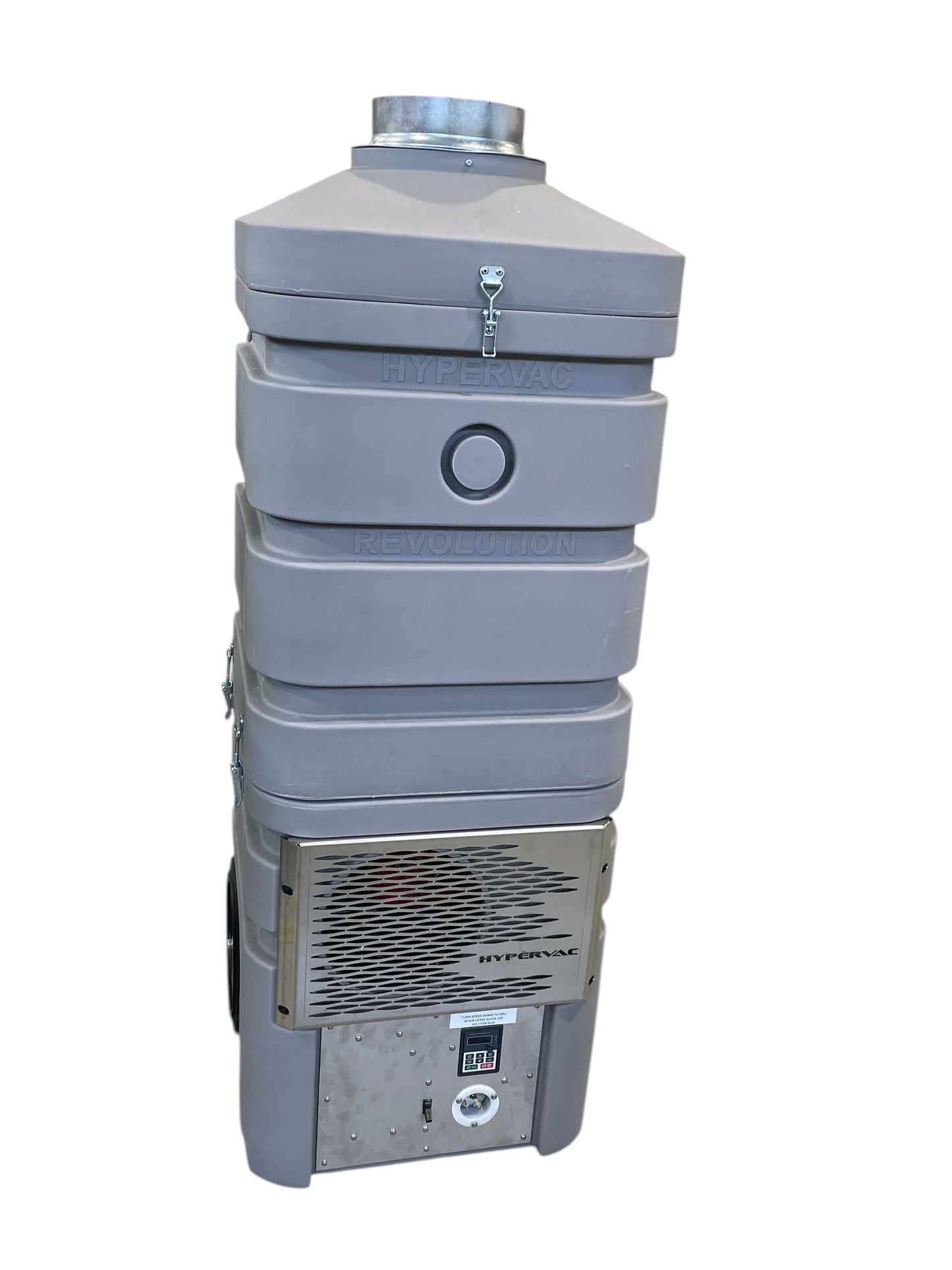

220V Revolution Hybrid Vacuum USA Complete Kit (PV105-A)

220V Revolution Hybrid Vacuum USA- complete with filters installed and hose reducer installed in the lid.

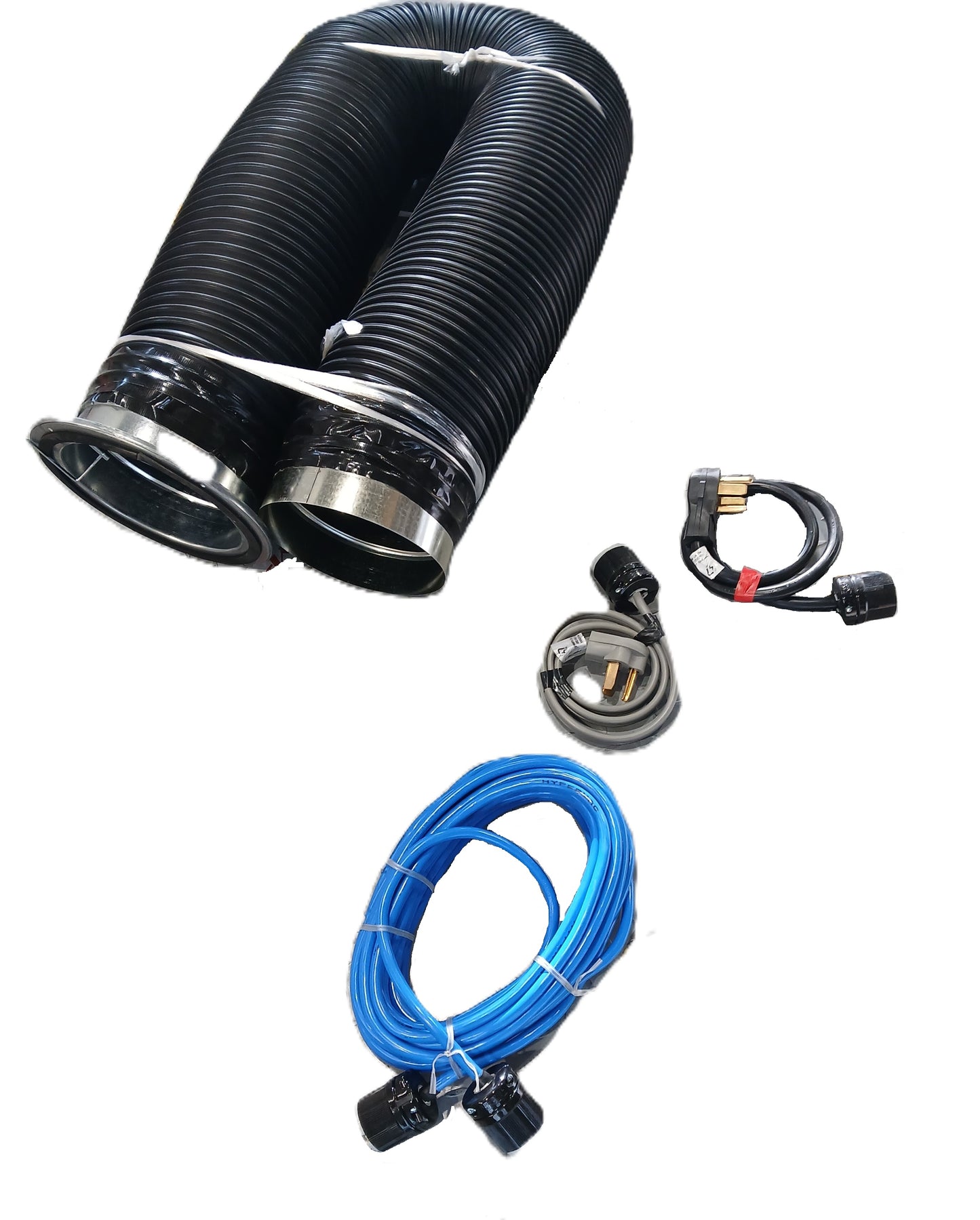

Includes a 50'FT - 12 gauge power cord (PV077) , 3 prong dryer plug (PV070), 4 prong dryer plug (PV074), 8'FT of 8" Vac hose (TL019) with spiral (PV061) and an 8" duct connection flange (TL021).

🔹 220V Model — Maximum Performance

• 5,000 CFM (measured with filters installed — not “free air” tested)

• 6.89" Static Lift

• Minimum 30 amp requirement

• Weight: 150 lbs

• Dimensions (assembled): 22” W x 24” D x 60” H

Why Static Lift Matters:
While airflow (CFM) moves debris, static lift is what pulls debris loose and keeps it moving through the hose system. High static lift ensures deep system cleaning — especially in challenging duct runs.

Power Options:

• Standard 220V / 30-amp dryer outlet

• Optional range/stove adapter plugs

• Extra extension cord recommended beyond 50’

• Quick 220 splitter box

  • USA: TL028

  • Canada: TL067-A

• 8,000W generator with 220V (30 or 50 amp outlet)

  • Use 10-gauge adapter cord between generator and vacuum

The 220V model is ideal when maximum performance is required and appropriate power is available.

Advanced 3-Stage Filtration System

All Revolution Hybrid vacuums include a 3-stage air-washable filtration system, built for durability and long service life.

Standard Filter:

• MERV 15 Main Conical Filter (Part #PV127-A)

  • Air washable

  • Built for high CFM applications

  • Designed for strength and longevity

Optional Filters:

• HEPA Main Conical Filter (Part #PV087)

• ULPA Filter (Part #PV087)

Important Filtration Notes:

• HEPA filters provide higher filtration levels, but the vacuum itself is not “HEPA Certified.”

• True HEPA certification would require independent testing before each job and each relocation.

• HEPA filter media is fragile and not designed for high-CFM vacuum systems.

• Efficiency declines quickly once in use, especially when cleaning/blowing out filters.

• HEPA media is better suited for low-CFM applications like air scrubbers.

MERV 15 media is stronger, more durable, and better suited for high-performance duct vacuum applications.
